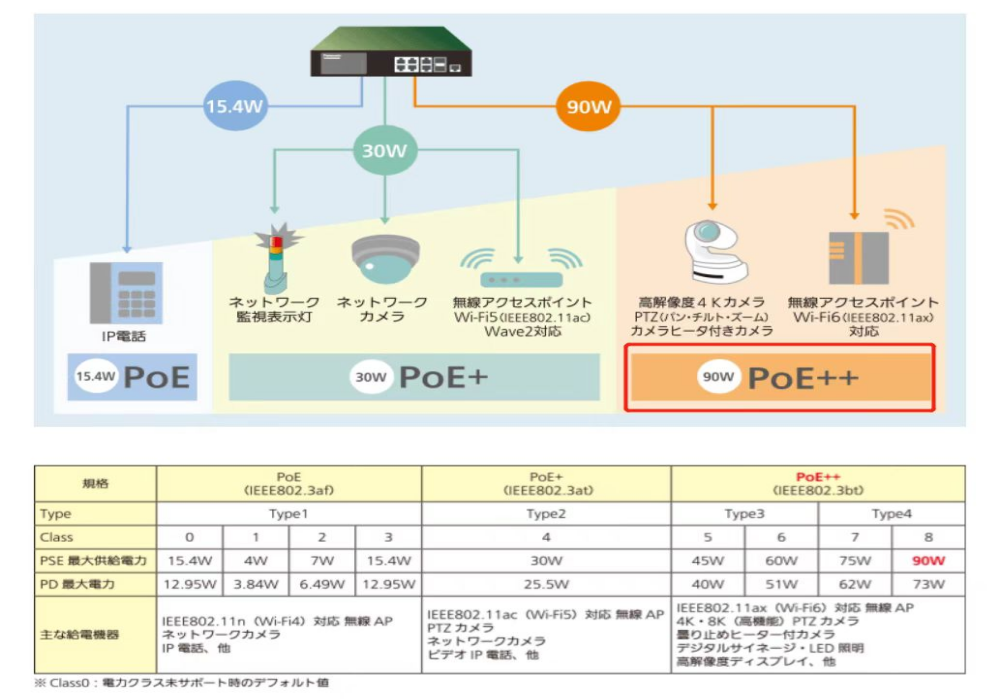

According to the Japanese customer demand, the product should be tested in the test environment of POE + + (rated current is 90W), as shown in the figure
Upon receiving the requirements, the staff of our engineering research and development department will arrange the test environment:

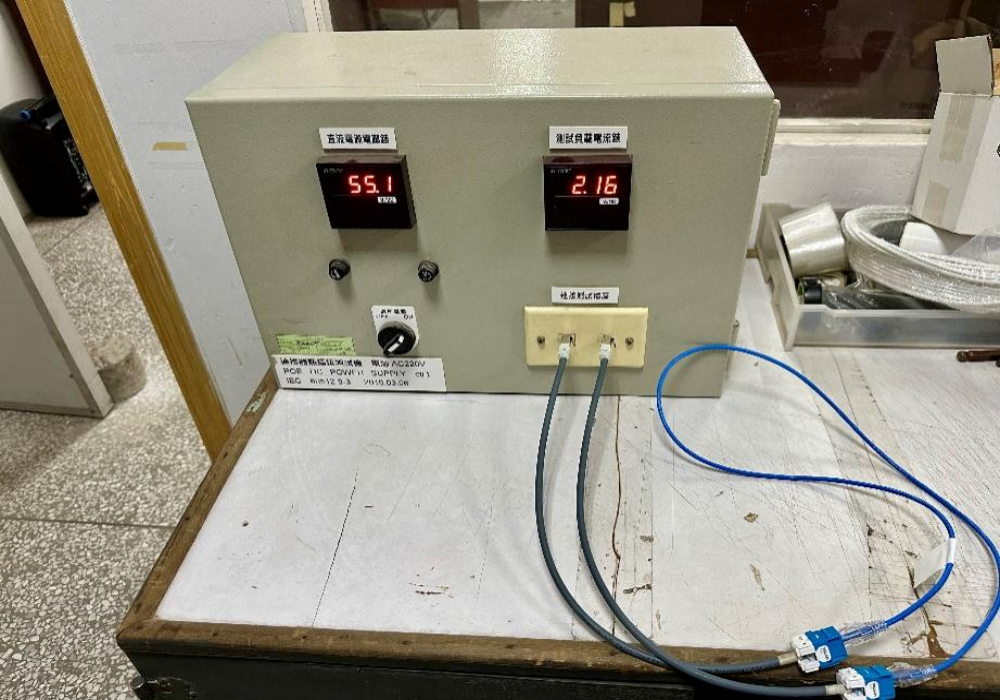

The test voltage is 55V, the current is 2.16,25 plug and pull times, and the POE condition is 55X2.16=119W, exceeding the customer requirement of 90W

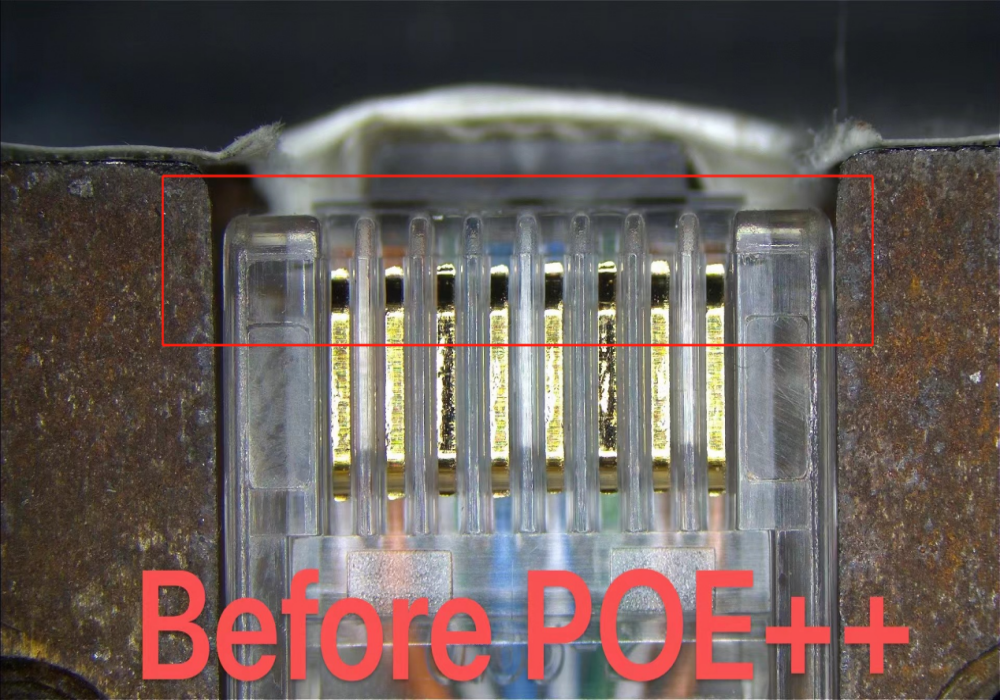

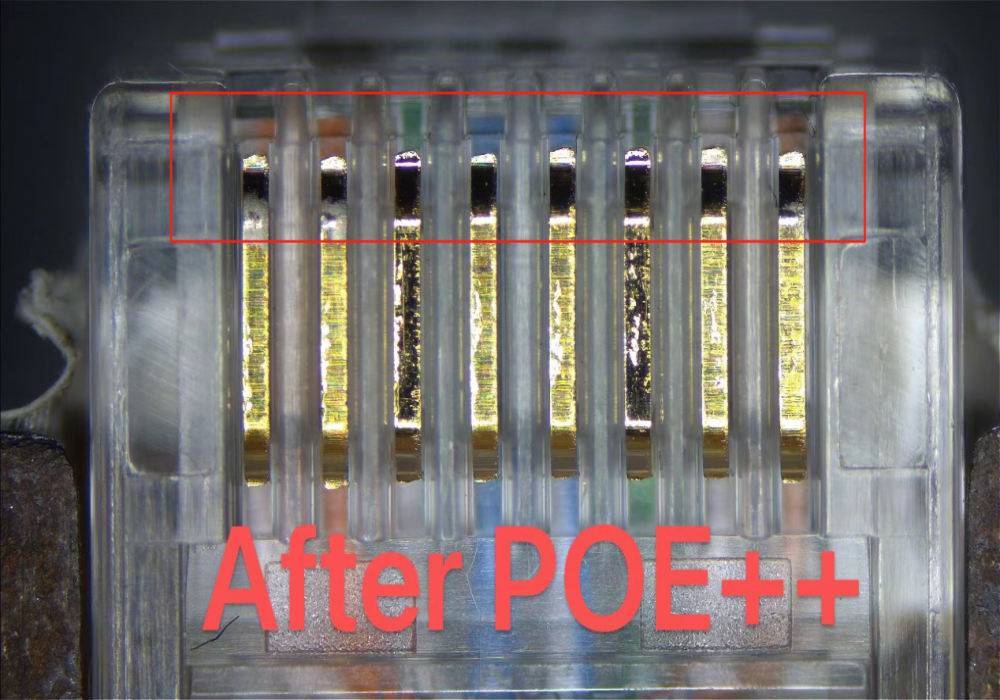

After 25 times, the network cable crystal head gold piece some blanched, but the measurement wire performance is still very smooth, the F LUKE test results also passed.

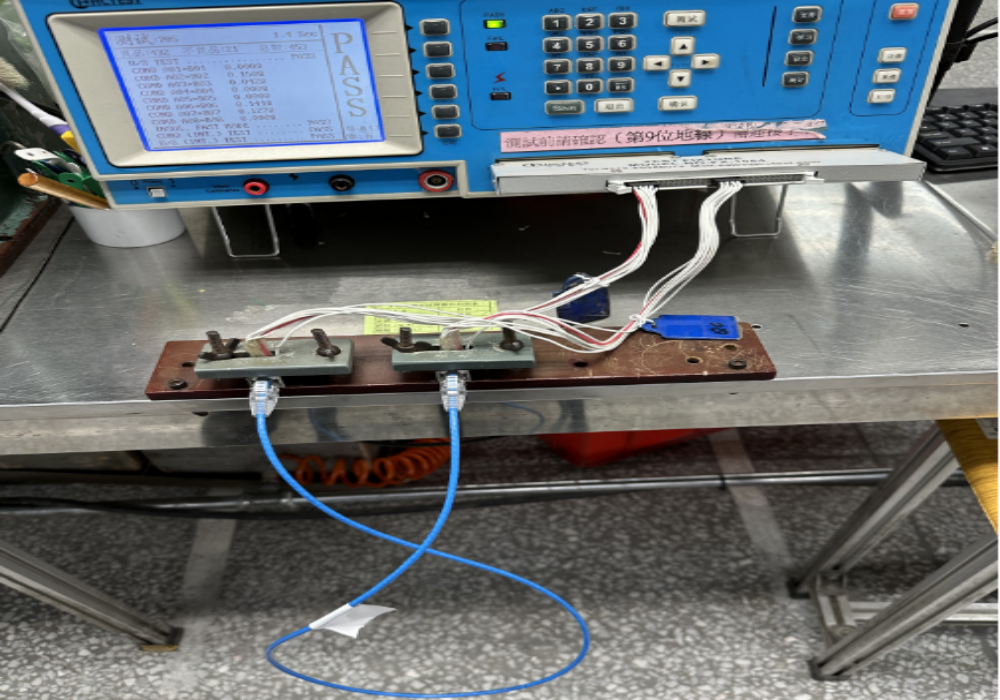

After POE + + test, the product test conventional electrical conduction test, and F LUKE CHANNEL test, good results.
The customer was very satisfied with the test results.
